HEAD OFFICE:

NEW YOUNG STAR METAL CO.,LTD

NO.201,Nanyi Road,Dongying,Shandong,China

Tel:+86-546-8618928

Fax:+86-546-8616758

E-mail:sales@yd-metal.com



Patent number:ZL 200720090445.9

SS 316- Mirror polished Carbon
steel--
Hot
galvanized

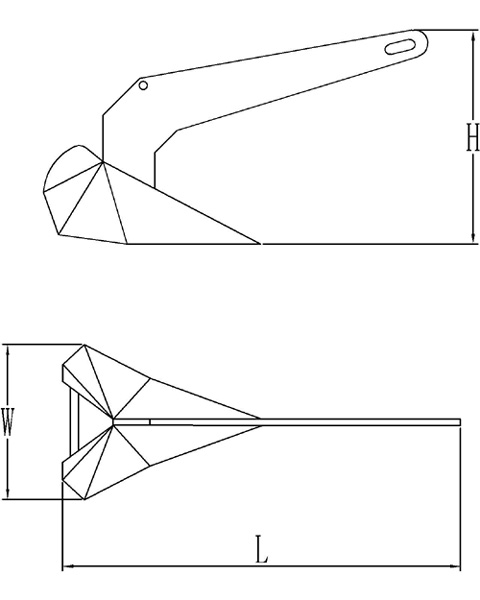

kg L(mm) H(mm) W(mm)
YDD-005S YDD-005C 5 560 245 205
YDD-007S YDD-007C 7.5 625 250 240
YDD-010S YDD-010C 10 400 280 280
YDD-015S YDD-015C 15 730 310 315
YDD-020S YDD-020C 20 870 390 350
YDD-030S YDD-030C 30 980 420 370
YDD-050S YDD-050C 50 1210 610 490

   Wing anchors are exceptionally effective in a variety of sea beds. Work very well with Young Star bow rollers, which give you a self launching system. Release the anchor without the need to leave the controls. Remains stable

 in various tidal conditions. Available in hot dipped galvanized and in high polished  stainless steel AISI 316.
