| Model |
Propulsion
system |
Tunnel |
Power Supply |
Motor |
Thrust |
Weight |
Boat |
| YD-T001 |
Single propeller |
140mm |
12V or 24V |
1.5kw |
30kgf |
12.3kg |
6–7(m) |
| YD-T002 |
Single propeller |
140mm |
12V or 24V |
2.2kw |
40kgf |
12.3kg |
7–9(m) |
| YD-T003 |
Single propeller |
185mm |
12V or 24V |
3kw |
55kgf |
15.7kg |
8–11(m) |
| YD-T004 |
Single propeller |
185mm |
12V or 24V |
4kw |
75kgf |
19.7kg |
10–13(m) |
| YD-T005 |
Single propeller |
185mm |
12V or 24V |
6kw |
95kgf |
25.5kg |
12–15(m) |
| YD-T006 |
Double system |
250mm |
12V or 24V |
8kw |
140kgf |
39.5kg |
14–18(m) |
| YD-T007 |
Double system |
250mm |
12V or 24V |
10kw |
240kgf |
44.1kg |
16–21(m) |
| YD-T008 |
Double system |
300mm |
12V or 24V |
10kw |
250kgf |
35.8kg |
20–26(m) |
| YD-T009 |
Double system |
300mm |
12V or 24V |
12kw |
270kgf |
55.2kg |
23–30(m) |

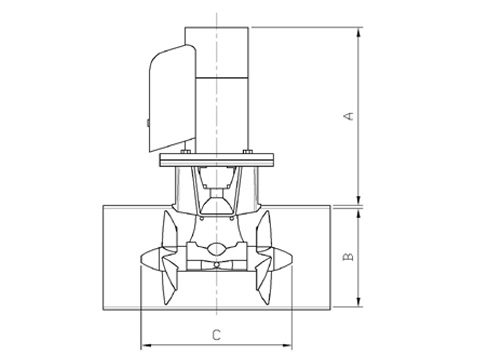

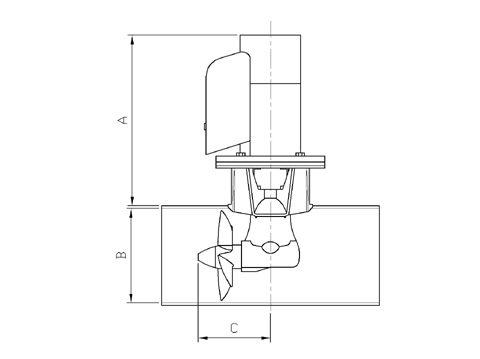

| Model |
A(mm) |
B(mm) |
C(mm) |
| YD-T001 |
260 |
140 |
110 |
| YD-T002 |
260 |
140 |
110 |
| YD-T003 |
270 |
185 |
120 |
| YD-T004 |
320 |
185 |
120 |
| YD-T005 |
370 |
185 |
120 |
| YD-T006 |
385 |
250 |
370 |
| YD-T007 |
470 |
250 |
735 |
| YD-T008 |
420 |
300 |
435 |
| YD-T009 |
480 |
300 |
435 |

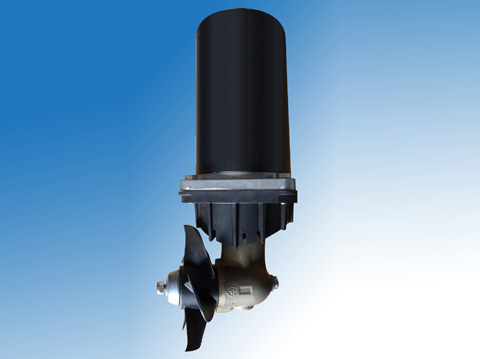

New product from New Young Star-- Electrical Thruster.The thruster is a small propulsive used by watercraft for station keeping, attitude contorl,or long duration low thrust acceleration. |
|
|
