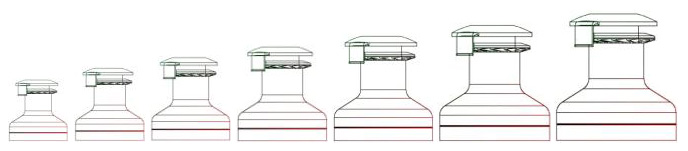

Model Gear Ratio Power Ratio SWL
(kg)
Weight (kg) Drum
Dia
(mm)
Base
Dia
(mm)

Height (mm)

Line Entry
(mm)

Line
Size
(mm)

1st 2nd 1st 2nd
YDSW-001 2:1   16:1   570 3.8 65.7 121 115 58 8-12
YDSW-002 2:1 4.5:1 14.2:1 29:1 690 5.5 74 138 145.5 69 8-12
YDSW-003 1.8:1 6:1 13.5:1 40.5:1 790 6.5 74 148 158.5 79 8-12
YDSW-004 2.5:1 7.8:1 13.8:1 44.6:1 1200 9.8 87 168 177.7 84 8-14
YDSW-005 2.8:1 9.2:1 13.8:1 48.8:1 1250 12.3 93 181 196.8 86 8-14
YDSW-006 3:1 11.5:1 13.9:1 55:1 1480 17.2 105 205 237.5 115 8-16
YDSW-007 3.2:1 15:1 13.5:1 65:1 1700 23.5 118 231 253.5 122 8-18

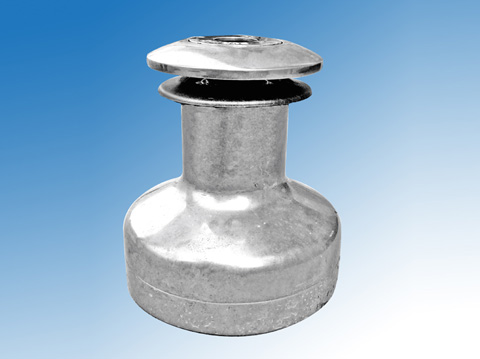

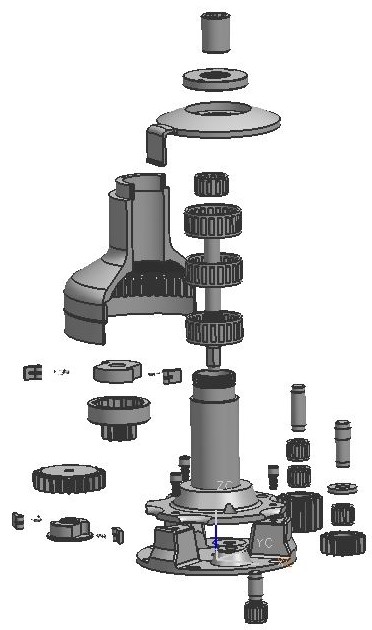

A sailing winch could be serviced by the boat owner without any tools, and can either be fitted in the conventional manner, or without removing the drum, to speed up installation. We have included in some simple safety features the direction arrow which means all your crew load the line on (feed) the winch correctly that willmake sailing more fun.
